Example 1 - Electrical Test Fixture

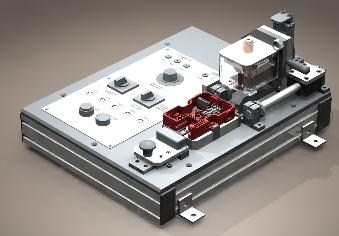

This fixture was designed to carry out electrical tests on a solenoid locking guard interlock device. This image as shown is an actual rendered 3D assembly drawing, as you can see it is possible to create a visual representation of an assembly (or component) without the need for manufacturing to be undertaken.

Example 2 - Circuit Board Test Fixture
This is an example of a fixture designed to locate and retain a circuit board during an electrical function test.

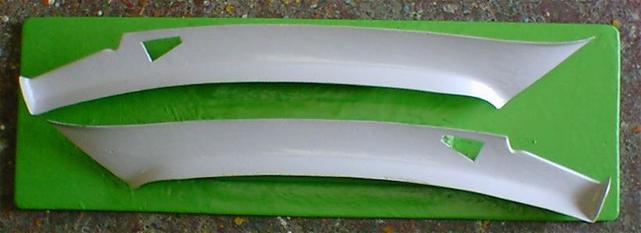

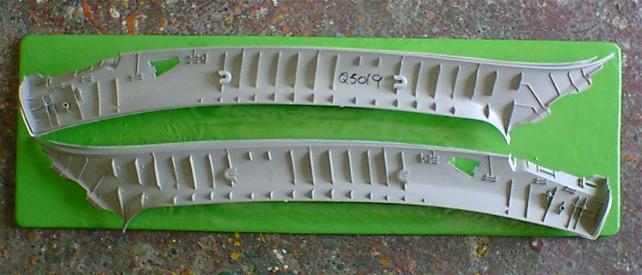

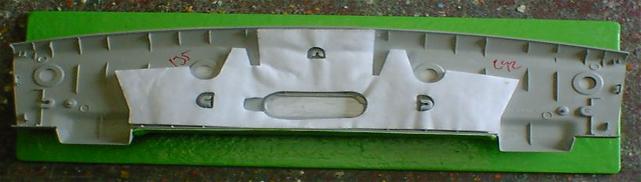

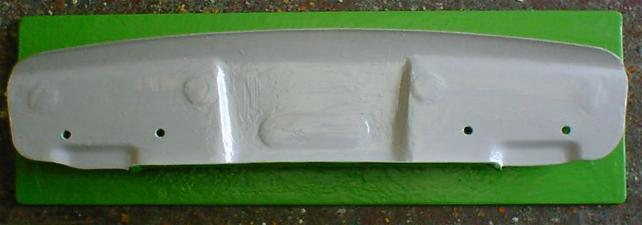

Example 3 - Panel Location Fixtures Below are a couple of fixtures for the location of vehicle panels during production processes.
